Particle size analysis of nanoparticles in highly turbid dispersions from 0.5 nm to 10,000 nm based on dynamic light scattering
In general, the acquisition of scattered light intensities of particles under thermal motion is deployed for nanoparticle characterisation (principle of dynamic light scattering (DLS)). The NANOPHOX CS combines photon cross-correlation spectroscopy (PCCS) with a innovative, patent pending polarisation-separated backscattering technology (Psb PCCS), which allows for high resolution nanoparticle size analysis in high concentrated suspensions and emulsions ranging from 0.5 nm to 10,000 nm. With only small sample effort, meaningful and repeatable measurements below one minute of sample material in original concentration are realised. Particle size, distribution width and polydispersity are determined just as reliably as the stability of the dispersion with this variant of dynamic light scattering.
The goal of every particle analysis is to obtain unbiased measurement results. The foundation for reliable results lies in a product-specific analysis of the sample in its original state. The PsB PCCS implemented in the NANOPHOX CS offers concentration-independent particle characterisation of nanoparticles in opaque suspensions and emulsions. This measurement method eliminates multiple scattered light, raises the signal-to-noise ratio to a new level, allowing higher sample concentrations with shorter measurement times and improved repeatability and accuracy.
Similar results cannot be achieved with photon correlation spectroscopy (PCS), which is traditionally used in dynamic light scattering. PCS uses the autocorrelation of the scattered light intensities to determine the particle size distribution. However, the traditional technique requires extremely dilute samples, as correct measurement of particle size is not possible due to the multiple scattering that occurs. The resulting sample preparation is time-consuming and error-prone, as this leads to changes in the particle size distribution and stability of the sample.
The application of the cross-correlation technique allows the calculation of the particle size distribution without the influence of multiple scattering. Comparability between conventional PCS and PCCS can be established by measuring a concentration series with monomodal suspensions of 100 nm polystyrene standards.

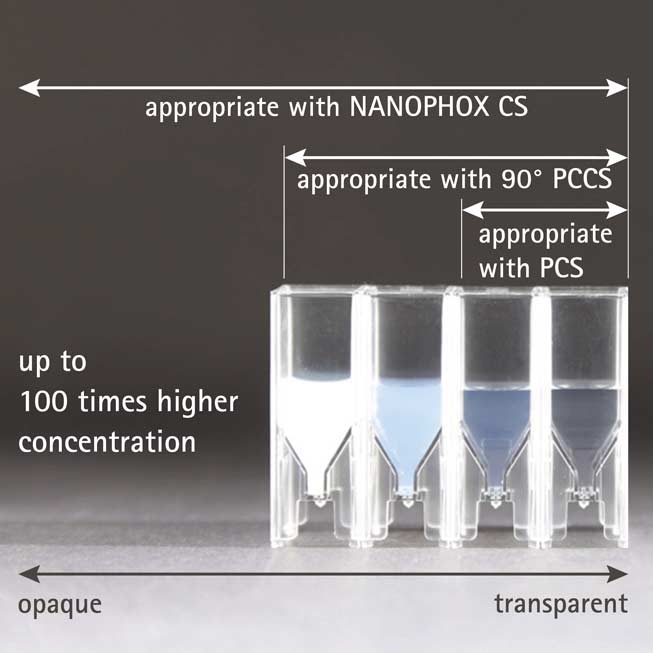

Five latex samples represent a spectrum ranging from the undiluted suspension with 1 % solids per volume to a dilution level of 1:10,000. For measurements in PCCS mode, the measured hydrodynamic diameter varies between 97 nm and 106 nm and is thus within specifications - regardless of dilution. The PCS results, on the other hand, deviate from the specifications for concentrated samples above a dilution of 1:1,000. The determination of reliable particle sizes with PCS starts at 5,000-fold dilution. PCCS achieves correct results already in the concentrated latex sample.
With the PsB PCCS, the NANOPHOX CS revolutionises dynamic light scattering and takes the advantages of PCCS to the next level. With sample concentrations up to a hundred times higher and measurements up to ten times faster, reliably repeatable measurement results are achieved with accuracy at a maximum.
- Concentration-independent characterisation of particle size and particle size distribution
- For nanoparticles in turbid suspensions and emulsions
- For analyses in research, development or quality laboratories
- Robust method for measuring ranges from 0.5 nm to 10,000 nm
- High signal quality due to 3D correlation with polarisation-separated Backscattering [patent pending]
- Simple sample preparation without dilution series | Elimination of sample preparation errors and sample contamination
- Measurability check of the sample before starting the measurement
- Short measuring times of < 1 - 3 min. typical
- Enables investigations of special effects such as particle-particle interactions and viscosity changes of highly concentrated samples
- High sensitivity for size changes and measurement of bimodal distributions
- Contactless measuring method for in-situ observations of stability or size changes, e.g., growth or crystallisation processes
- Direct measurement method of the stability, agglomeration and sedimentation of slightly charged (electrostatically stabilised) to non-charged (sterically stabilised) particles of turbid samples
